Larry Black owns this Hi-E road bike that was on display at Cirque.  It is an amazing display of innovation in lightweight technology, and a forerunner to modern lightweight bicycles. Harlan Meyer built this bike.

1950s Universal front brake.

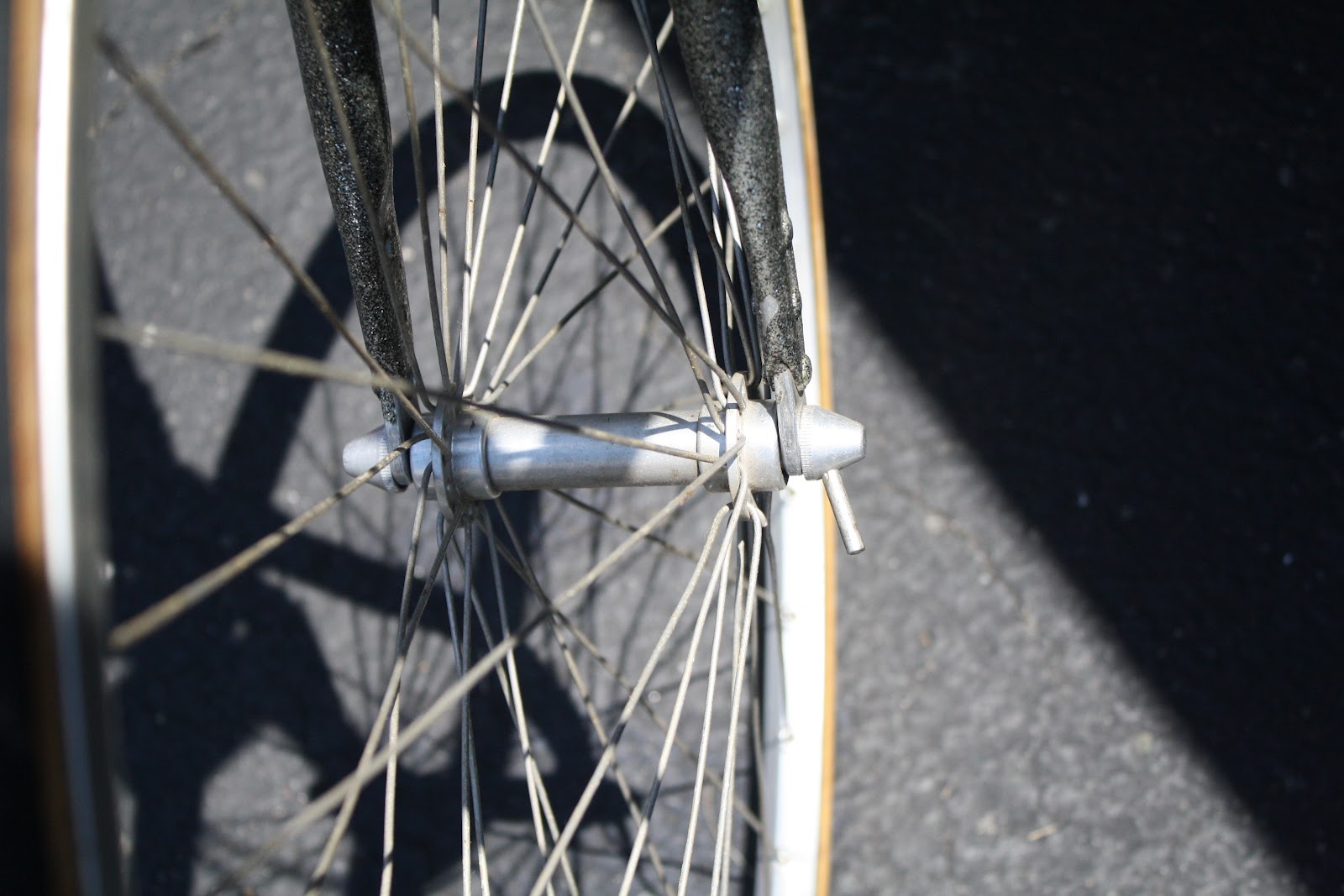

 These Hi-E hubs are still the lightest in existence today. Note the spoke lacing and minimal skewers. (The front spokes are aluminum and are double ended threaded, laced through a spoke hole then uses a proprietary nipple, tensioned with a special tool.)
 Dropouts joined to the frame.  The rear hub is Hi-E as well.
Drillium on rear derailleur- (stock Huret 3rd Generation Jubilee rear derialleur).  This shot also shows a side angle of the rear dropout joining the seat- and chain-stays.  It’s also interesting how the rear derailleur housing runs inside of the dropout.

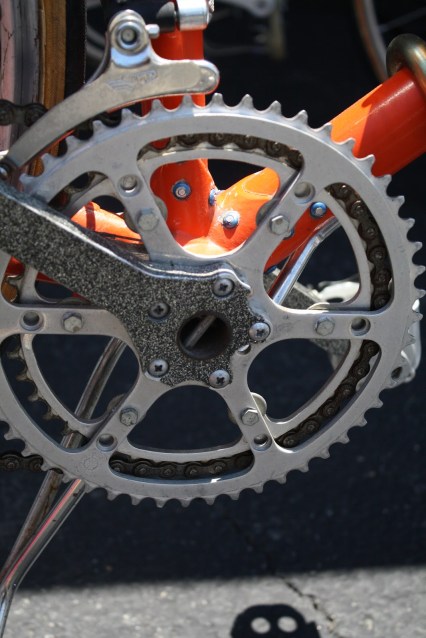

Cranks and bottom bracket shell. (Hi-E custom made cranks with Lambert/Viscount chainrings screwed to them. Simplex Prestige front derailleur. This is the first time I have ever seen the Hi-E cranks in person)
